VERSATEX® Exterior Trim
VERSATEX is dedicated to cellular PVC trim and are leaders in innovation, quality, and technical assistance in the building industry. For you, that translates to thickness tolerances that are half the industry norm and the continued development of revolutionary products. You also receive the best technical assistance available, with on-site engineers, installation information, and a best practices manual. Because PVC trim is what they do best, they offer unrivaled product quality, service, and expertise.
VERSATEX Building Products are manufactured from cellular PVC, which is impervious to insects and moisture. Their product formula ensures VERSATEX maintains its bright white color and is dense enough to use the same cutting tools & fasteners one would with a traditional product. These factors and more create an ideal solution for moisture-sensitive areas, including those along coastal zones or regions affected by salt and high humidity.
Warping, fading, cupping, or splitting is now a thing of the past — just a building product with high aesthetic value backed by an industry-best, lifetime, fully transferable, non-prorated warranty.
- Trim is available in two finishes, Smooth Matte and Timber Ridge
- PVC trimboards are available in either Smooth/Smooth or Smooth/Timber Ridge
- Timber Ridge is a natural surface texture complimenting fiber cement and cedar
- PVC trim is cut with a proprietary system to keep the edges clean and dimensionally accurate with true 90° angles
- Cut-to-length and cut-to-width trim option in half-unit quantities, saving money by eliminating unnecessary waste
Trim Profiles
Trimboard

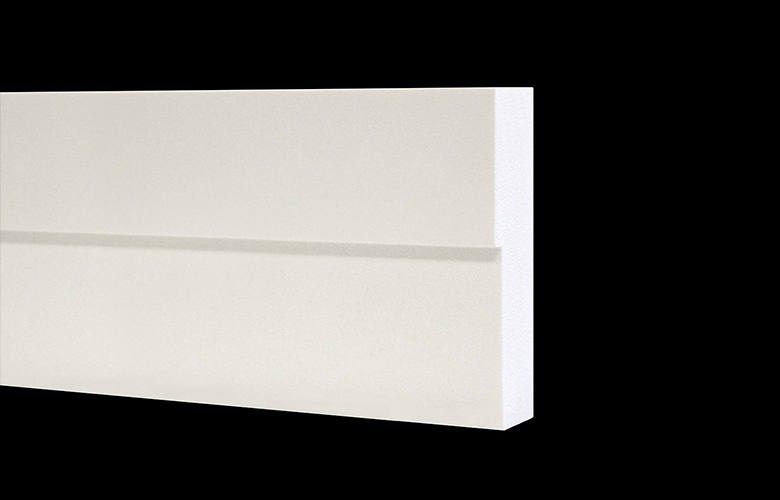

Trim with Flange
Standard Stealth

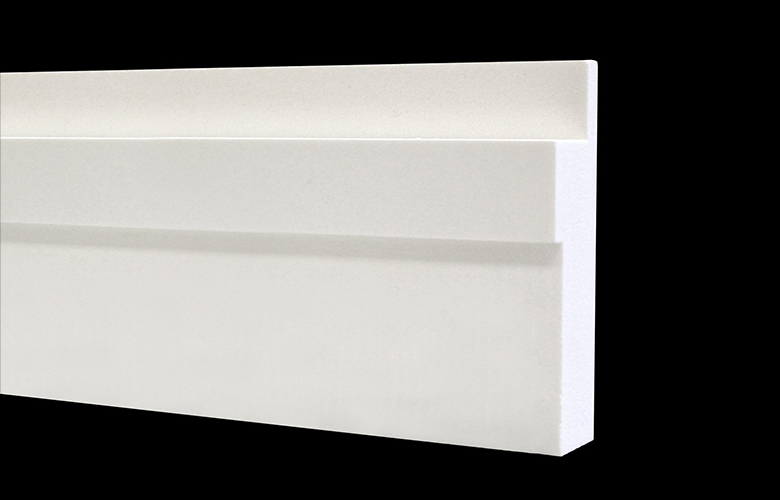

Stealth with Flange
Stealth Casing
with J-Channel
Dimensions
| WIDTH | THICKNESS | |||||
| 5/8 | 1 | 5/4 | 6/4 | 8/4 | ||
| Nominal | Actual | actual 5/8″ | actual 3/4″ | actual 1″ | actual 1 1/4″ | actual 1 1/2″ |
| 2 | 1 1/2″ | ✘ | ||||
| 3 | 2 1/2″ | ✘ | ||||
| 4 | 3 1/2″ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 5 | 4 1/2″ | ✘ | ✘ | |||
| 6 | 5 1/2″ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 8 | 7 1/4″ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 10 | 9 1/4″ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 12 | 11 1/4″ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 16 | 15 1/4″ | ✘ | ✘ | ✘ | ||
| Nominal | Actual | Length | |
|---|---|---|---|
| Trim with Flange | 5/4 x 4 | 1” x 3 1/2” | 18’ |
| Trim with Flange | 5/4 x 6 | 1” x 5 1/2” | 18’ |
| Stealth | 5/4 x 4 | 1” x 3 1/2” | 18’ |
| Stealth | 5/4 x 6 | 1” x 5 1/2” | 18’ |
| Stealth | 5/4 x 8 | 1” x 7 1/4” | 18’ |
| Stealth with Flange | 5/4 x 4 | 1” x 3 1/2” | 18’ |
| Stealth with Flange | 5/4 x 6 | 1” x 5 1/2” | 18’ |
| Stealth Casing with J-Channel | 5/4 x 4 | 1” x 3 1/2” | 18’ |
| Stealth Casing with J-Channel | 5/4 x 6 | 1” x 5 1/2” | 18’ |
